need help with my clippard order..

Last Post 18 Jul 2010 12:40 AM by Nick. 7 Replies.

Sort:

	Prev Next
You are not authorized to post a reply.

Author

Messages

vicious p

Veteran

Ensign

Posts:135

28 Jun 2010 10:27 PM
I usually use MME soleniods but im going to go with poppets in my Graf Spee to have less crap in it, I ordered MME's but the boats become quite cramped inside not to mention id like to keep the ones i bought as spares for my bismarck. What exactly do i need to set up triples using a poppet? Ive never used or really looked at them before so im quite clueless and want to make sure i order everything the first time around. I already have (2) mav 3's. So now im pretty sure i just need one of them and i need to order (3) pav 2's. Is there anything im missing here? How to set them up and there operation would be nice as well. thanks! Also if theres a guide i missed sorry!

froggyfrenchman User is Offline

Rear Admiral (RADM)

Posts:2988
Avatar

30 Jun 2010 08:11 PM
I have never done it myself. But I have seen it done. I think that the folks used (1) MAV-3, to fire three MAV-2 poppets. The MAV-3 was plunged by the servo, and each of the MAV-2 valves had an MPA threaded onto it. I cannot recall what size of MPA for sure, but I think it was either an MPA-5, or possibly an MPA-3. The MPA is an actuator. Hope this helps. Mikey

Nick

Veteran

Rear Admiral (RDML)

Posts:1051
Avatar

30 Jun 2010 10:07 PM

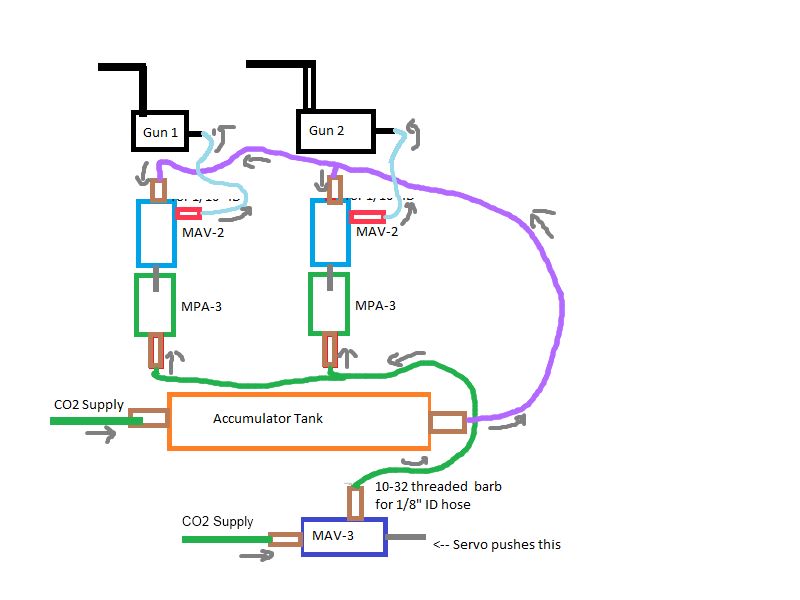

I drew this up a few months ago for a dual setup, much the same as a triple, you'd just add one more gun and associated mav2, mpa3 and fittings. The drawing shows a single unchecked accumulator tank, you may want to provide each cannon with its own tank and consider using checkvalves on them.. I'd also ignore the comment about using 1/8 ID hose to feed the mpa-3s, feeding them with 1/16 ID hose should be sufficient.

Running: SMS Derfflinger, IJN Maru(oiler) Building: SMS Moltke, Orfey Class DD Washington Cascade Column : Model Warship Combat in the Northwest

vicious p

Veteran

Ensign

Posts:135

01 Jul 2010 12:19 PM
Ahhh, that helps alot. thanks guys, i almost ordered without getting the MPA-3's.. that would have been upsetting.

Tugboat

Veteran

Admiral

Posts:4438
Avatar

01 Jul 2010 01:23 PM
If you order PAV-2's you don't need the MPA-3's. If you order MAV-2's, you need the MPA-3's. I go with the MPA-3/MAV-2 combo myself.

Phill Lowe User is Offline

Ensign

Posts:189

17 Jul 2010 12:16 PM
A micro catalog of clippard parts used in warships is available at www.eskimo.com/~phill/wcc look under the technical info section.

WCC Minister of Misinformation.

Kotori87

Rear Admiral (RADM)

Posts:2279
Avatar

17 Jul 2010 11:53 PM
be careful whenever you use check valves. If you don't set them up right, they will keep your accumulators charged even after you shut down your gas system and disconnect it, leaving you with a potential safety hazard the next time you try to work on your boat. Not fun to pull on a gas line you thought was depressurized, only to have it blast dust and grit into your face

There are 101 different types of people: those who understand binary, those who don't, and those who just can't count...

Nick

Veteran

Rear Admiral (RDML)

Posts:1051
Avatar

18 Jul 2010 12:40 AM
Yes, you have to either put an exhaust valve downstream of the check valve (one for each) or remember to hold open the trigger with the gas off to bleed the tanks out.

Running: SMS Derfflinger, IJN Maru(oiler) Building: SMS Moltke, Orfey Class DD Washington Cascade Column : Model Warship Combat in the Northwest
